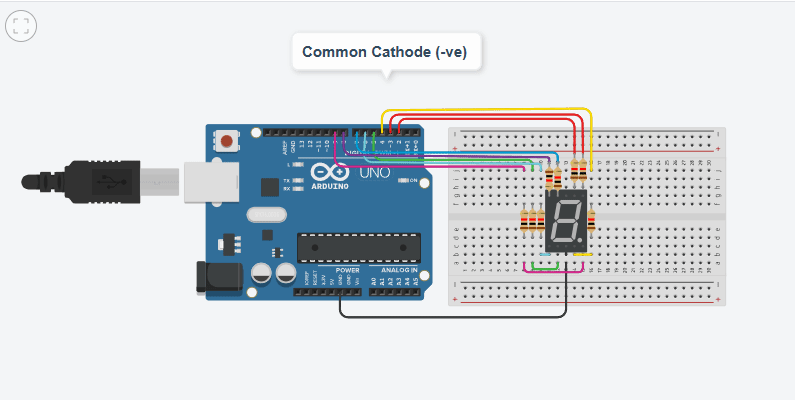

7 Segment Display with Arduino (Common Cathode)

TinkerCad project link

TinkerCad Link:

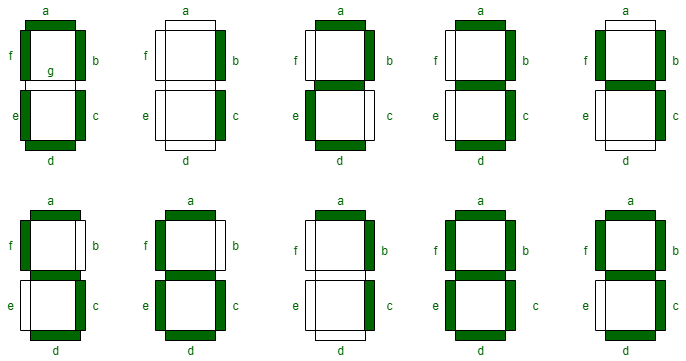

Seven Segment Digits

/*
   Pins used: Arduino 2 to 9
*/
byte pin[] = {2, 3, 4, 5, 6, 7, 8, 9}; // Arduino pin array

// Corrected binary patterns for a Common Cathode display (1 = ON, 0 = OFF)
int number[10][8] = {
  {1, 1, 1, 1, 1, 1, 0, 0}, // 0
  {0, 1, 1, 0, 0, 0, 0, 0}, // 1
  {1, 1, 0, 1, 1, 0, 1, 0}, // 2
  {1, 1, 1, 1, 0, 0, 1, 0}, // 3
  {0, 1, 1, 0, 0, 1, 1, 0}, // 4
  {1, 0, 1, 1, 0, 1, 1, 0}, // 5
  {1, 0, 1, 1, 1, 1, 1, 0}, // 6
  {1, 1, 1, 0, 0, 0, 0, 0}, // 7
  {1, 1, 1, 1, 1, 1, 1, 0}, // 8
  {1, 1, 1, 1, 0, 1, 1, 0}  // 9
};

void setup() {
  for (byte a = 0; a < 8; a++) {
    pinMode(pin[a], OUTPUT); // Define output pins
  }
}

void loop() {
  for (int a = 0; a < 10; a++) { // Loops through all 10 digits (0-9)
    for (int b = 0; b < 8; b++) {
      digitalWrite(pin[b], number[a][b]); // Display numbers
    }
    delay(1000); // Wait 1 second before switching numbers
  }
}
