CSE2135 - Data Structure¶

Trees¶

Q6(b) [6]: Develop a Huffman tree using the following node weights: 20, 2, 8, 7, 4, 10, and 14.
Q6(c) [3+5]: Define maxheap and minheap? Built a heap from the following list of numbers: 44, 30, 50, 22, 60, 55, 77.
Q7(a) [2]: How many ways a binary tree can be represented in memory?

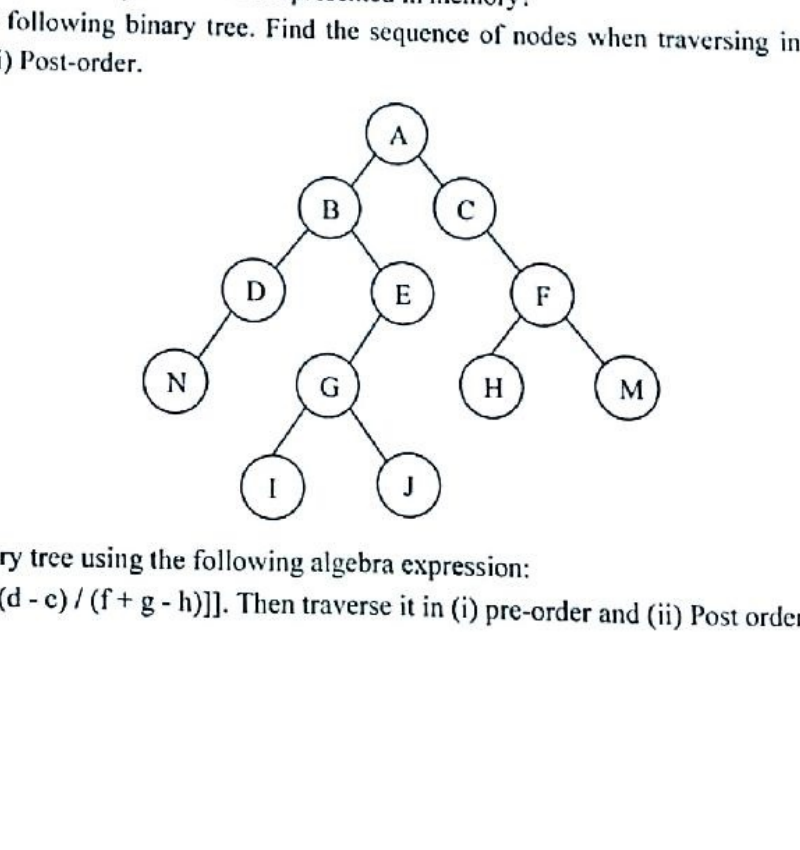

Q7(b) [6]: Consider the following binary tree. Find the sequence of nodes when traversing in (i) Pre-order, (ii) In-order, and (iii) Post-order.

Q7(c) [6]: Draw the binary tree using the following algebra expression: [a + (b - c) * [(d - c) / (f + g - h)]]. Then traverse it in (i) pre-order and (ii) Post order.

Q7(a) [2+3]: What is binary search tree? Construct a binary search tree by inserting the following sequence of numbers: 10, 12, 5, 4, 20, 8, 7, 15, 13.
Q7(b) [3]: Build a heap from the following list of numbers: 54, 40, 60, 32, 70, 55, 47, 25.

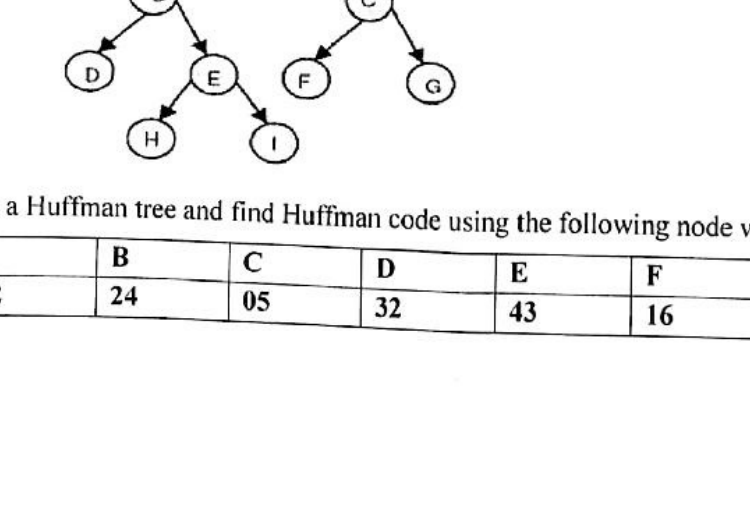

Q7(c) [3]: Consider the following binary tree. Find the sequence of nodes when traversing in (i) Pre-order, (ii) In-order, and Post-order.

Q7(d) [3]: Develop a Huffman tree and find Huffman code using the following node weights:

A	B	C	D	E	F
1	24	05	32	43	16

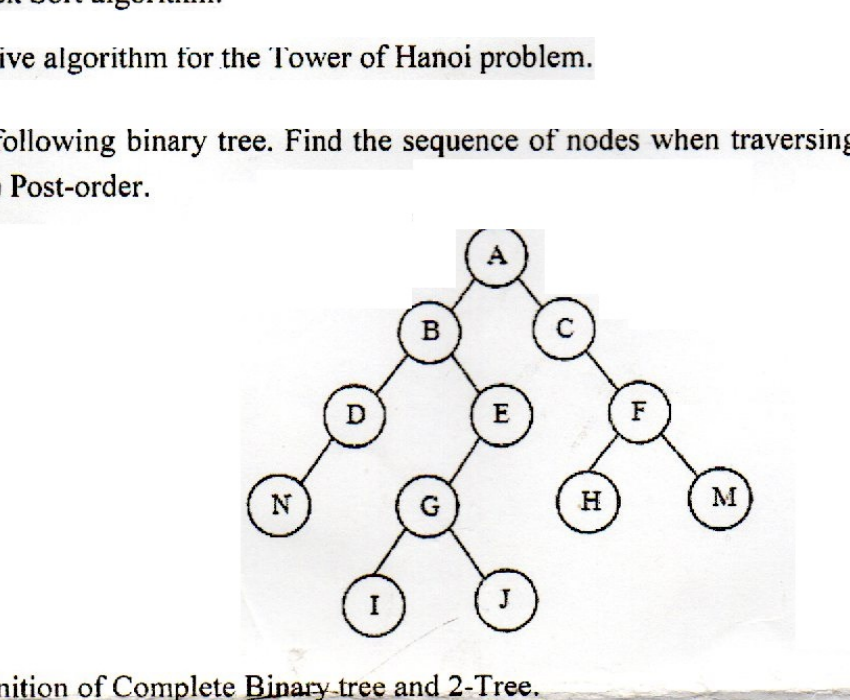

Q5(a) [3]: Consider the following binary tree. Find the sequence of nodes when traversing in (i) Pre-order, (ii) In-order, and (iii) Post-order.

Q5(b) [3]: Write the definition of Complete Binary-tree and 2-Tree.
Q5(c) [4]: Built a Max-heap from the following list of numbers: 22, 62, 32, 52, 42, 72, 92, 82, 12.
Q5(d) [4]: Develop a Huffman tree and find Huffman code using the following node weights.
Q7(a) [1+2]: What is binary search tree? Draw a binary search tree for the following data: 5, 10, 20, 3, 2, 7, 11, 18, 17.

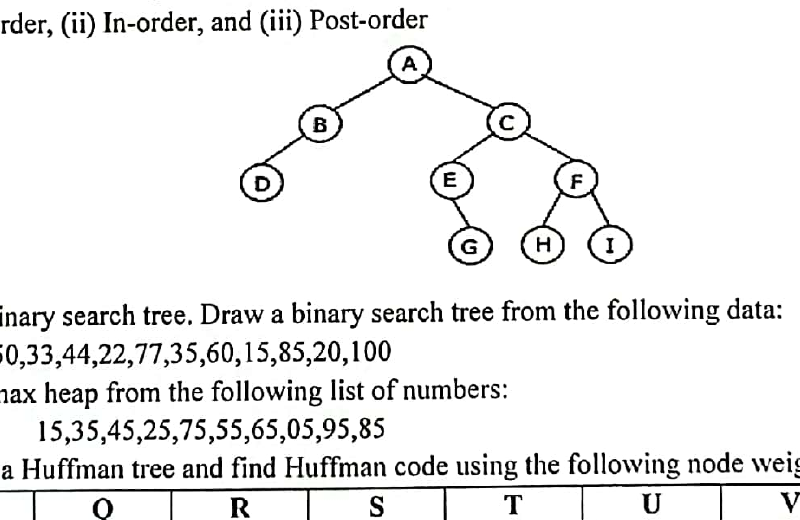

Q5(a) [3]: Consider the following binary tree. Find the sequence of nodes when traversing in (i) Pre-order, (ii) In-order, and (iii) Post-order.

Q5(b) [3]: Define binary search tree. Draw a binary search tree from the following data: 50, 33, 44, 22, 77, 35, 60, 15, 85, 20, 100.
Q5(c) [3]: Build a max heap from the following list of numbers: 15, 35, 45, 25, 75, 55, 65, 05, 95, 85.
Q5(d) [5]: Develop a Huffman tree and find Huffman code using the following node weights:

P	Q	R	S	T	U	V	W
23	10	06	12	32	16	42	37

Q5(b) [4]: Write short notes on (i) Extended Binary Trees and (ii) Complete Binary Trees.
Q5(c) [6]: Construct a binary tree T from the following equation E and then find out the (i) pre order, (ii) in order and (iii) post order traversal of tree T: \(E:[a*(b\uparrow c)+d]-[(e-f+g)/(h\uparrow i-j)]\).

Q3(d) [2+2]: Build a Huffman Tree from the following table and assign code value for each character.

Character	Frequency	Character	Frequency
a	5	b	25
c	1	d	18
e	12	f	35

Q5(a) [2+1]: Define Binary tree with an example. How is it different from an ordinary tree?
Q5(b) [4]: Given the following traversal, draw a binary tree:
Inorder: 4 2 5 1 6 7 3 8; Postorder: 4 5 2 6 7 8 3 1
Preorder: A B C E I F J D G H K L; Inorder: E J C F J B G D K H L A
Q5(c) [1+4]: What is balance factor in AVL tree? Construct an AVL tree for data 8, 10, 3, 2, 1, 5, 4, 7 into binary search tree using AVL rotation.
Q5(d) [2]: Write an algorithm for heap-sort (using max-heap).

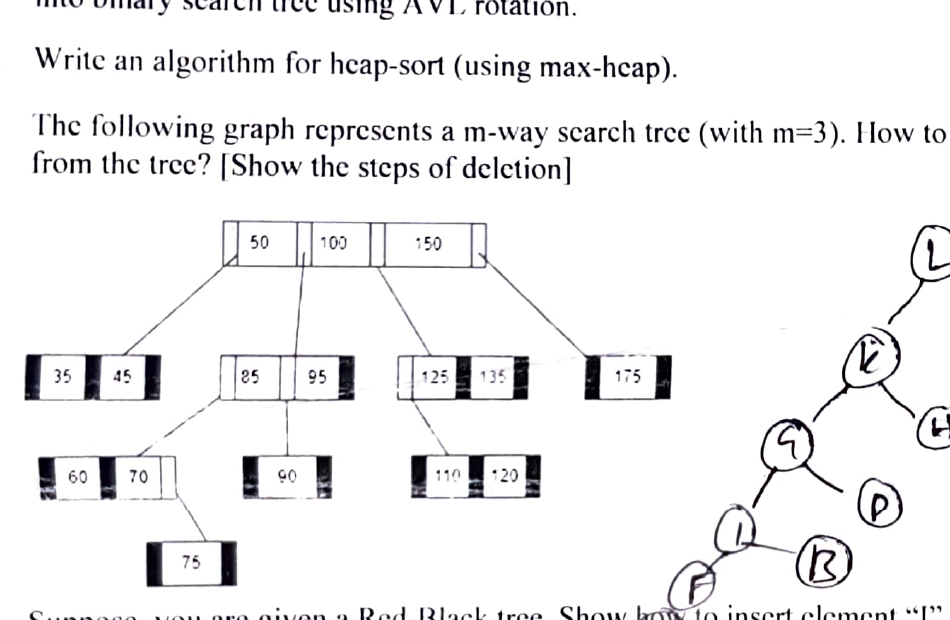

Q6(a) [3]: The following graph represents a m-way search tree (with m=3). How to delete element 100 from the tree? [Show the steps of deletion]

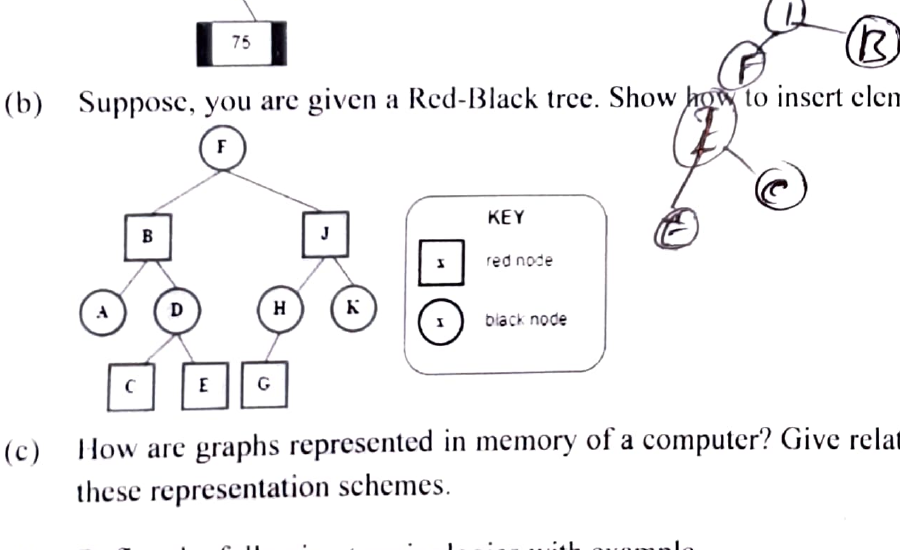

Q6(b) [3]: Suppose, you are given a Red-Black tree. Show how to insert element "I" into the tree?
