Introduction to C

Comparison: Structured vs Unstructured Programming

Comparison: Structured vs Unstructured Programming

To understand why C is called a structured language, let us look at two examples performing the same task: Printing numbers from 1 to 5.

1. Unstructured Approach (Using goto)

In the early days (BASIC, Assembly), programmers used goto statements to jump (লাফানো) from one line to another. This creates "Spaghetti Code" which is very confusing.

// Unstructured Code Example
#include <stdio.h>

int main() {
    int i = 1;

    start:              // Label
    printf("%d ", i);
    i++;

    if(i <= 5)
        goto start;     // Jumps back to 'start' label

    return 0;
}

• Problem: If the program is big, jumping back and forth makes it hard to understand the flow (প্রবাহ).

2. Structured Approach (Using Loops/Functions)

In C, we use specific structures like for, while, or separate functions. This makes the code organized.

// Structured Code Example
#include <stdio.h>

// Function definition
void printNumbers(int n) {
    int i;
    for(i = 1; i <= n; i++) {
        printf("%d ", i);
    }
}

int main() {
    printNumbers(5);  // Calling the function
    return 0;
}

• Benefit: We can clearly see that printNumbers is a separate block (ব্লক). If there is an error, we only check that block.

Key Differences

Feature	Unstructured Programming	Structured Programming (C)
Logic Flow	Uses goto to jump randomly.	Uses loops and functions.
Debug	Difficult to find errors (ত্রুটি).	Easy to find and fix errors.
Readability	Confusing and messy.	Clean and easy to read.
Modification	Hard to modify (পরিবর্তন করা).	Easy to modify or expand.

Difference between Variable and Constant

Difference between Variable and Constant

Ans to the Question

In C programming, both variables and constants are used to store data, but they behave differently during the execution (সম্পাদন) of the program.

Basis of Difference	Variable (চলক)	Constant (ধ্রুবক)
Definition	A variable is a named memory location where data is stored, and its value (মান) can be changed during program execution.	A constant is a fixed value that does not change during the execution of the program.
Changeability	The value of a variable can be modified (পরিবর্তন করা) multiple times.	Once defined, the value of a constant cannot be modified.
Declaration	We declare it using data types like int a;	We declare it using the const keyword or #define preprocessor.
Example	int mark = 50; mark = 60; (Valid)	const float PI = 3.14; PI = 3.15; (Invalid/Error) #define PI 3.14159 // Defining a symbolic constant PI #define MESSAGE "Hello, World!" // Defining a string constant

Rules for Variable Name

In C, variables are also known as Identifiers (শনাক্তকারী). We must follow specific rules while naming a variable. If we violate these rules, the compiler (কম্পাইলার) will show an error.

The rules are as follows:

1. First Character:
   A variable name must begin with an alphabet (letter) (uppercase A-Z or lowercase a-z) or an underscore _. It cannot start with a digit (অংক).
2. Valid: age, _total, mark1

3. Invalid: 1stRank (Starts with a number)

4. Allowed Characters:
   A variable name can consist of letters, digits, and underscores only. No other special characters (বিশেষ অক্ষর) like @, $, %, etc., are allowed.

5. Invalid: user@name, price$

6. No Keywords:
   We cannot use C Keywords (reserved words) as variable names because they have special meaning to the compiler.

7. Invalid: int, float, for, if, while

8. No White Space:
   Blank spaces (ফাঁকা স্থান) are not allowed within a variable name.

9. Valid: student_name

10. Invalid: student name

11. Case Sensitivity:
    C is a case-sensitive language. This means uppercase and lowercase letters are treated as different.

12. Example: SUM, sum, and Sum are three different variables.

13. Length:
    Although there is no strict limit, ANSI C recognizes the first 31 characters of a variable name. It is good practice to keep the name meaningful and short.

Identification of Syntax Errors

Fixing a buggy program

Ans to the Q1(d)

Upon analyzing the given program code, the following Syntax Errors (সিনট্যাক্স ত্রুটি) or grammatical mistakes are identified:

1. Missing Header File: The program uses the printf function to display output, but the standard input-output library #include <stdio.h> is missing at the top.
2. Missing Semicolons: In C language, every executable statement must end with a semicolon ;. It is missing in three places:
3. After the declaration float perimeter, area
4. After the assignment radious = 5
5. After the printf statement.

Corrected Program

Here is the code after fixing all the errors.

#include <stdio.h>   // Included header file
#define PI 3.14

int main()
{
int radious;
float perimeter, area;  // Added semicolon

radious = 5;            // Added semicolon

perimeter = 2.0 * PI * radious;
area = PI * radious * radious;

printf("%f, %f", perimeter, area);  // Added semicolon

return 0;
}

Output

When we execute (চালনা করা) the corrected program, the computer performs the following calculations:

• Perimeter:
• Area:

Since the variables are of float data type, the printf function with %f specifier usually prints up to 6 decimal places by default.

The final output will be:

31.400000, 78.500000

Tokens, Keywords, Identifiers, and Variables in C

Tokens, Keywords, Identifiers, and Variables in C

Q: Elaborate in detail on Tokens, Keywords, Identifiers, and Variables in C. Differentiate between them with a comprehensive comparison table.

---

Introduction

To understand the C programming language, we must first understand its smallest building blocks. Just as a paragraph is made of sentences, and sentences are made of words, a C program is constructed using various elements like Tokens, Keywords, Identifiers, and Variables.

1. Tokens

Definition:
A Token (টোকেন) is the smallest individual unit in a C program that the Compiler (কম্পাইলার) can understand. When we compile a program, the compiler breaks the entire code into these small units for processing. It is the basic vocabulary of the language.

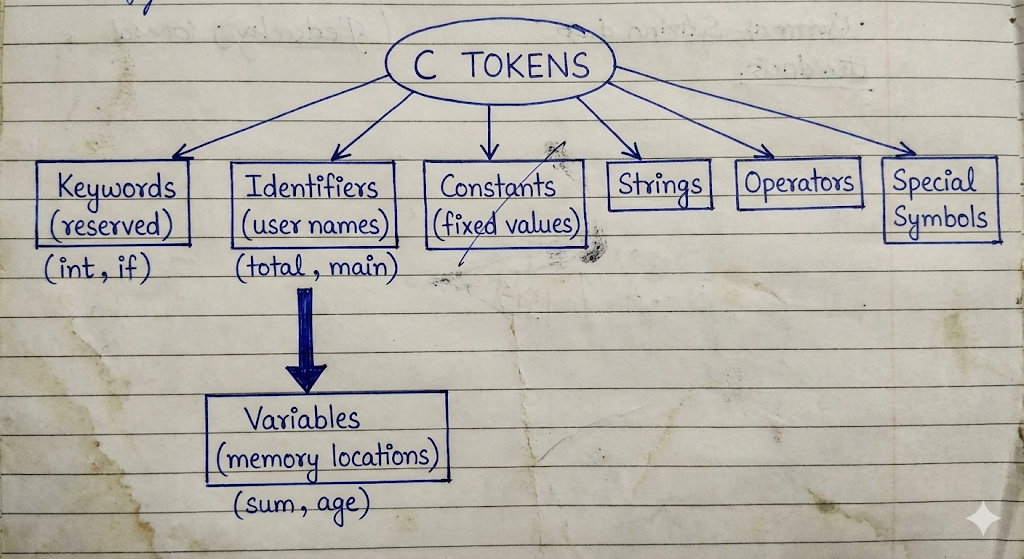

Classification of Tokens:
C supports six types of tokens:

1. Keywords: (int, while, continue)
2. Identifiers: (main, amount, total)
3. Constants: Fixed values like 100, 3.14, 'A'.
4. Strings: Sequence of characters like "Hello World".
5. Special Symbols: Punctuation like ;, {}, (), #.
6. Operators: Symbols that perform operations like +, -, *, ++.

   Example:

int x = 10;

This single line consists of 5 tokens:

1. int (Keyword)
2. x (Identifier)
3. = (Operator)
4. 10 (Constant)
5. ; (Special Symbol)

2. Keywords

Definition:
Keywords (সংরক্ষিত শব্দ) are reserved words that have a fixed, pre-defined meaning in the C language. We cannot change their meaning, nor can we use them as names for variables or functions.

Key Characteristics:

• Case Sensitivity: All keywords must be written in Lowercase (ছোট হাতের অক্ষর).
• Total Count: There are 32 standard keywords in ANSI C.
• Functionality: They define the flow and structure of the program.

Examples:

• Data Types: int, char, float, double, void.
• Control Flow: if, else, switch, case, default.
• Loops: for, while, do.
• Storage Classes: auto, static, register, extern.

3. Identifiers

Definition:
Identifiers (শনাক্তকারী/নামকরণ) are the names given by the programmer to various program elements such as Variables (চলক), Functions (ফাংশন), Arrays, and Structures. They help in identifying a specific entity uniquely during the Execution (নির্বাহ) of the program.

Rules for Naming Identifiers:

1. Start: Must start with a letter (A-Z or a-z) or an underscore _.
2. Digits: Can contain digits (0-9) but cannot start with one.
3. Special Characters: No special characters allowed except underscore.
4. Keywords: Keywords cannot be used as identifiers.
5. Length: ANSI C recognizes the first 31 characters.

Valid vs Invalid Examples:

• myVariable (Valid)
• _score (Valid)
• 9thClass (Invalid - starts with digit)
• roll number (Invalid - contains space)

4. Variables

Definition:
A Variable is a specific type of identifier. It is a named memory location used to store data. The value stored in a variable can be changed or modified (পরিবর্তন করা) during the program execution.

Declaration and Initialization:

• Declaration: Tells the compiler the variable's name and data type.

• Syntax: data_type variable_name;

• Initialization: Assigning a value to the variable.

• Syntax: variable_name = value;

Scope of Variables:

• Local Variables: Declared inside a function block.
• Global Variables: Declared outside all functions.

Detailed Comparison Table

Here is the comparison distinguishing all four concepts.

Basis of Difference	Token	Keyword	Identifier	Variable
Definition	The smallest individual unit of a program.	Reserved words with fixed meanings.	User-defined names given to program elements.	A named memory location to store data.
Category/Relation	It is the Super Set (everyone belongs here).	It is a type of Token.	It is a type of Token.	It is a type of Identifier (and thus a Token).
Creation	Created by the compiler parsing the text.	Pre-defined by the language developers.	Defined by the Programmer (User).	Defined by the Programmer (User).
Meaning	Depends on the type of token.	Has a fixed, special meaning.	Has no specific meaning until defined.	Holds a value that signifies data.
Changeability	N/A	Cannot be changed.	Name is fixed once defined.	Value can be changed frequently.
Allowed Characters	Varies (e.g., Operators use symbols).	Only English letters (lowercase).	Letters, digits, and underscore _.	Letters, digits, and underscore _.
Usage	Building block of code.	Defines structure (syntax).	Identifies entities (Labeling).	Stores actual data values.
Examples	int, main, {, +, 100	if, while, return, const	total, avg, calculate_sum	salary, age, marks

Sample Program Analysis

To summarize, let us look at a small code snippet to identify these parts.

int total = 100;

• Tokens: There are 5 tokens (int, total, =, 100, ;).
• Keyword: int is the keyword indicating integer type.
• Identifier: total is the identifier (name).
• Variable: total is also the variable because it occupies memory to store the value.
• Constant: 100 is a constant value.

In conclusion, while all Keywords, Identifiers, and Variables are Tokens, they serve very different purposes in constructing a structured C program.

#include directive

#include directive

Question:
Explain the #include Directive in detail. Discuss its syntax, types, and how it works in the C compilation process.

---

Introduction to #include Directive

The #include directive is one of the most important and commonly used Preprocessor Directives (প্রিপ্রসেসর নির্দেশাবলী) in C programming. It is not a C statement but a command given to the Preprocessor (প্রিপ্রসেসর).

Before the actual Compilation (কম্পাইলেশন) starts, the preprocessor processes this directive. Its main job is to insert or copy the entire content of a specific file (usually a Header File) into the source program at the point where the #include line is written.

Purpose of #include

The primary purpose of the #include directive is to allow a program to access functions and variables defined in external files or Standard Libraries (স্ট্যান্ডার্ড লাইব্রেরি).
For example, to use the printf() function, we must include the stdio.h file because the definition of printf is written inside it.

Syntax

The #include directive can be written in two different ways depending on where the file is located.

Syntax 1:

#include <filename>

Syntax 2:

#include "filename"

Types of #include Formats

Although both formats perform the same task of including a file, the difference lies in where the preprocessor looks for the file.

1. Angle Brackets < > Format:

• Usage: #include <stdio.h>
• Search Path: When we use angle brackets, the preprocessor searches for the file only in the Standard System Directories (সিস্টেম ডিরেক্টরি). These are the folders where the compiler's built-in library files are installed.
• Use Case: This is used for standard header files like stdio.h, math.h, string.h, etc.

2. Double Quotes " " Format:

• Usage: #include "myheader.h"
• Search Path: When we use double quotes, the preprocessor first searches for the file in the Current Directory (বর্তমান ডিরেক্টরি) where the source code is saved. If it does not find the file there, it then searches in the standard system directories.
• Use Case: This is mainly used for User-Defined header files (files created by the programmer).

How #include Works (The Process)

When we write a program, the compilation process happens in steps. The #include directive is handled during the "Preprocessing" stage.

1. The preprocessor scans the source code (উৎস কোড).
2. When it finds an #include line, it locates the specified file.
3. It removes the #include line and replaces it with the actual text/code contained inside that header file.
4. The final code (which is now larger) is then sent to the Compiler.

Example Program

Here is a sample program demonstrating both types of includes.

File 1: myfuncs.h (User Defined File)

// This is a custom header file
int add(int a, int b) {
    return a + b;
}

File 2: main.c (Main Program)

#include <stdio.h>      // Standard Library include
#include "myfuncs.h"    // User-defined include

int main() {
    int sum = add(10, 20); // Calling function from myfuncs.h
    printf("The sum is: %d", sum); // Using function from stdio.h
    return 0;
}

Why is it important?

• Reusability (পুনর্ব্যবহারযোগ্যতা): We can write a useful function once in a header file and use it in many programs using #include.
• Organization: It helps in keeping the code clean by separating complex logic into different files.
• Standardization: It provides access to the powerful set of C standard libraries.

In conclusion, the #include directive is the bridge between our program and the vast resources available in C libraries.

Precedence of Operators

Precedence of Operators

Introduction to Precedence of Operators

In C programming, an expression (রাশিমালা) often contains multiple operators. The Precedence of Operators (অপারেটর অগ্রাধিকার) determines which operator determines the grouping of terms in an expression. It decides which operation is performed first when there are mixed operators.

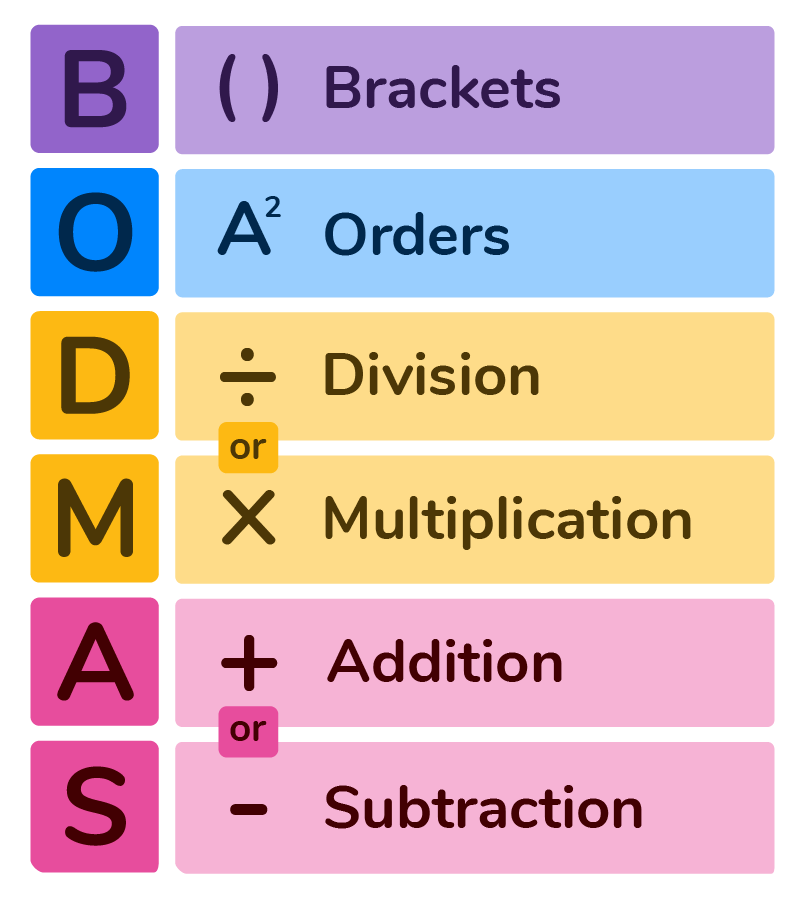

Just like in Mathematics we follow the BODMAS rule, in C language we follow the Operator Precedence table. Operators with higher precedence are evaluated (মূল্যায়ন করা) before operators with lower precedence.

Hierarchy of Precedence (Higher to Lower)

Below is the segmented classification of operators based on their priority levels. The flow goes from Highest Precedence (top) to Lowest Precedence (bottom).

1. Unary Operators (Highest Priority)

These operators have the highest precedence among arithmetic and logical operators. They are evaluated first.

• Associativity: Right to Left (ডান থেকে বামে)
• Operators:
• ++ (Increment)
• -- (Decrement)
• ! (Logical NOT)
• ~ (Bitwise NOT)
• - (Unary Minus)
• sizeof

2. Arithmetic Operators

After handling unary operators, the compiler looks for arithmetic operators. Inside this category, there is also a split in priority.

• Level 2A: Multiplicative (Higher within Arithmetic)
• Associativity: Left to Right

• Operators: *, /, %

• Level 2B: Additive (Lower within Arithmetic)

• Associativity: Left to Right

• Operators: +, -

• Note: Multiplication and Division happen before Addition and Subtraction.


3. Shift Operators

These are used to shift bits.

• Associativity: Left to Right
• Operators: <<, >>

4. Relational Operators

These operators are used for comparison (তুলনা). They have lower precedence than arithmetic operators.

• Level 4A: Inequality
• Associativity: Left to Right

• Operators: <, <=, >, >=

• Level 4B: Equality

• Associativity: Left to Right
• Operators: ==, !=

5. Bitwise Operators

These work on individual bits. They are evaluated after relational operators.

• Associativity: Left to Right
• Operators:
• & (Bitwise AND) - Higher
• ^ (Bitwise XOR) - Medium
• | (Bitwise OR) - Lower

6. Logical Operators

These are used to combine conditions. They have lower precedence than bitwise operators.

• Level 6A: Logical AND
• Associativity: Left to Right

• Operator: &&

• Level 6B: Logical OR

• Associativity: Left to Right

• Operator: ||

• Important: && is always evaluated before ||.

7. Ternary Operator

This is the conditional operator.

• Associativity: Right to Left
• Operator: ? :

8. Assignment Operators (Lowest Priority)

These are evaluated last, meaning the result is assigned (বরাদ্দ করা) only after all calculations are done.

• Associativity: Right to Left
• Operators: =, +=, -=, *=, /=, etc.

---

Summary Table of Precedence

Rank	Operator Category	Operators	Associativity
1	Unary	++, --, !, sizeof	Right to Left
2	Arithmetic (Multiplicative)	*, /, %	Left to Right
3	Arithmetic (Additive)	+, -	Left to Right
4	Relational	<, >, <=, >=	Left to Right
5	Equality	==, !=	Left to Right
6	Logical AND	&&	Left to Right
7	Logical OR	`
8	Conditional	? :	Right to Left
9	Assignment	=, +=, -=	Right to Left
10	Comma	,	Left to Right

---

Example of Evaluation

Let us consider an expression to understand how precedence works.

Expression:
x = 10 + 20 * 5;

Step-by-Step Execution:

1. Here we have + (Addition), * (Multiplication), and = (Assignment).
2. According to precedence, * is higher than +.
3. So, 20 * 5 is calculated first. Result is 100.
4. Now the expression becomes x = 10 + 100.
5. Next, + is evaluated. 10 + 100 becomes 110.
6. Finally, = has the lowest precedence, so 110 is assigned to x.

Result: x = 110

Data Types

Data Types

Ans to the Question

Definition of Data Type

A Data Type in C programming specifies the type of data that a variable (চলক) can store. It tells the Compiler (কম্পাইলার) two main things:

1. How much Memory (মেমরি) or storage space is to be allocated for the variable.
2. How the stored bit pattern should be interpreted or processed.

Every variable in C must have a data type associated with it. For example, if we want to store a student's roll number, we use an integer type, but if we want to store their percentage, we use a float type.

Classification of Data Types

C language provides a rich set of data types. They are broadly classified into three main categories as shown in the chart below.

1. Primary (Built-in) Data Types: These are the fundamental data types provided by C.
2. Derived Data Types: These are derived from the primary data types (like Arrays, Pointers).
3. User-Defined Data Types: These are defined by the programmer (like Structure, Union, Enum).

---

Detailed Explanation of Primary Data Types

The Primary or Basic data types are the most commonly used types. Here is the explanation of each with examples.

1. Integer (int)

The int keyword is used to declare integer variables. It stores whole numbers (পূর্ণসংখ্যা) without any decimal or fractional parts.

• Memory Size: Usually 2 bytes or 4 bytes (depends on the processor/compiler).
• Range: -32,768 to 32,767 (for 2 bytes).
• Format Specifier: %d
• Qualifiers: We can modify the size and range using qualifiers like short, long, signed, and unsigned.

Example Code:

int age = 21;
printf("My age is %d", age);

2. Floating Point (float)

The float keyword is used to store decimal numbers or real numbers. It is used when we need precision (নির্ভুলতা) or fractional values. It typically provides 6 digits of precision.

• Memory Size: 4 bytes.
• Format Specifier: %f

Example Code:

float marks = 85.50;
printf("My marks: %f", marks);

3. Double (double)

The double data type is similar to float but it provides Double Precision. It is used when we need to store very large decimal numbers with higher accuracy (up to 15 digits).

• Memory Size: 8 bytes.
• Format Specifier: %lf

Example Code:

double pi = 3.1415926535;
printf("Value of PI: %lf", pi);

4. Character (char)

The char keyword is used to store a single character (অক্ষর). In C, characters are enclosed in single quotes like 'A'. Internally, the computer stores the ASCII value (an integer) of that character.

• Memory Size: 1 byte.
• Format Specifier: %c

Example Code:

char grade = 'A';
printf("Your grade is %c", grade);

5. Void (void)

The void data type means "nothing" or "no value". It is generally used with functions (ফাংশন) to specify that the function does not return (ফেরত দেওয়া) any value. We cannot create a variable of type void.

Example Code:

void display() {
    printf("This function returns nothing.");
}

---

Brief on Derived and User-Defined Types

Since this is a comprehensive question, we must also mention these types.

Derived Data Types:
These are built by combining basic data types.

• Arrays: A collection of variables of the same type. Example int numbers[5];
• Pointers: Variables that store the address (ঠিকানা) of another variable.

User-Defined Data Types:
These allow programmers to define their own custom types.

• Structure (struct): Can store variables of different data types under one name.
• Union: Similar to structure but shares the same memory location.
• Enumeration (enum): Used to assign names to integral constants.

Summary Table

Data Type	Keyword	Size (Typical)	Format Specifier	Use
Integer	int	4 bytes	%d	Counting, whole numbers
Floating Point	float	4 bytes	%f	Average, Percentage
Double	double	8 bytes	%lf	High precision calculation
Character	char	1 byte	%c	Grades, Symbols

In conclusion, choosing the correct data type is essential for Memory Management (মেমরি ব্যবস্থাপনা) and the correct execution of the program.

Briefly describe the types of instruction in C.

Instruction in C.

Question:
Briefly describe the types of instruction in C.

---

Introduction

In C programming, an Instruction (নির্দেশনা) is a command or statement given to the computer to perform a specific task. When we write a C program, it is basically a collection of instructions. The Compiler (কম্পাইলার) reads these instructions and translates them into machine language so the computer can execute (সম্পাদন) them.

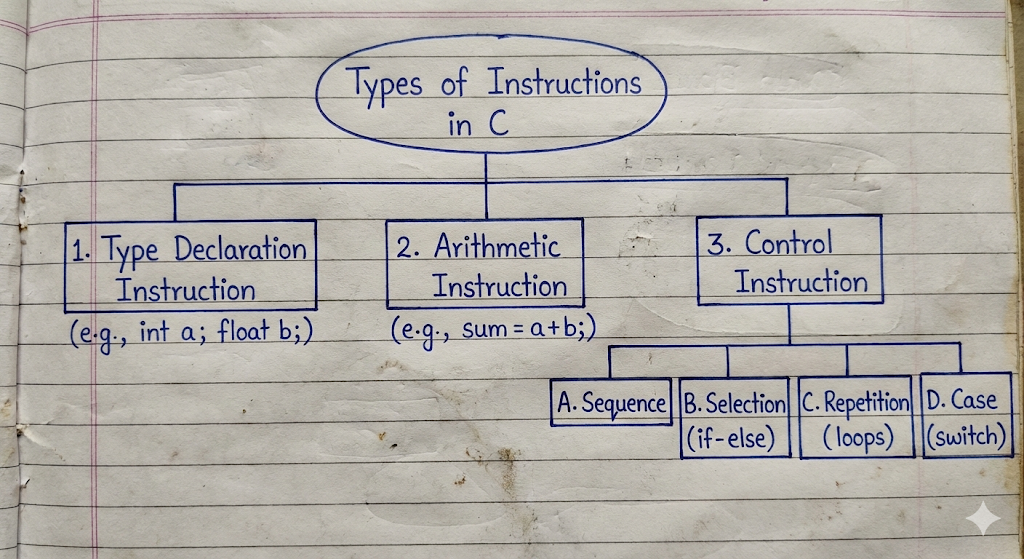

C instructions can be broadly classified into three main categories based on the type of work they perform.

1. Type Declaration Instruction

This is the first type of instruction used in C programs. To store any data in the memory (মেমরি), we must first declare the type of the variable. The Type Declaration Instruction is used to declare the type of variables (চলক) used in the program.

• Purpose: It tells the compiler the name of the variable and the type of data it will hold.
• Rule: All type declaration instructions must be written at the beginning of the main() function or before using the variable.
• Syntax: data_type variable_name;
• Example:


  int roll_number;
  float marks;
  char grade;


Here, roll_number is declared as an integer, marks as a float, and grade as a character.

2. Arithmetic Instruction

After declaring variables, we often need to process data. The Arithmetic Instruction (গাণিতিক নির্দেশনা) is used to perform arithmetic operations on constants and variables. These instructions are performed using arithmetic operators like +, -, *, /.

• Execution: These instructions are executed by the ALU (Arithmetic Logic Unit) of the CPU.
• Structure: It consists of a variable name on the left hand side and an expression (রাশিমালা) on the right hand side.
• Syntax: variable = expression;
• Example:


  int a = 10, b = 20, sum;
  sum = a + b;


Here, a + b is an arithmetic instruction that calculates the sum and stores it in the variable sum.

3. Control Instruction

By default, a C program executes instructions sequentially, meaning one line after another. However, sometimes we need to change this order or repeat some lines. The Control Instruction (নিয়ন্ত্রণ নির্দেশনা) is used to control the flow of execution of the program.

Control instructions determine the order in which other statements are executed. They are further divided into four types:

A. Sequence Control Instruction:
This ensures that the instructions are executed in the same order (ক্রম) in which they appear in the program. This is the default behavior.

B. Selection or Decision Control Instruction:
These instructions allow the computer to take a decision (সিদ্ধান্ত) based on a condition. If the condition is true, one block of code runs; if false, another block runs.

• Examples: if, if-else, conditional operators.

C. Repetition or Loop Control Instruction:
These instructions help us to execute a part of the program multiple times repeatedly (পুনরাবৃত্তিমূলকভাবে). Instead of writing the same code again and again, we use loops.

• Examples: for loop, while loop, do-while loop.

D. Case Control Instruction:
This is used when we have multiple choices and we need to select one specific choice. It is generally used to create menus.

• Examples: switch statement, case.

Conclusion

To write any meaningful C program, we need to use a combination of these three instructions. We start with Type Declaration to set up memory, use Arithmetic Instructions to calculate values, and use Control Instructions to manage the logic flow.
